END TIPPER SEMI TRAILER 3 AXLES

Description

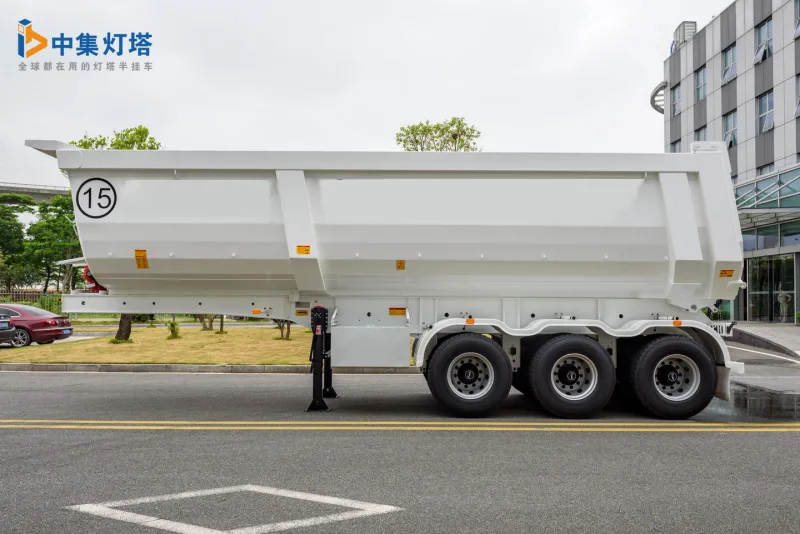

End Tipper Semi Trailer 3 Axles Description

1. Product Features:

3 Axle tipper trailer as know as 3 axle end dump trailer, back tipper trailer, back end tipper, back end tipper trailer. 3 Axle tipper trailers are generally used to transport building materials such as sand, bauxite, manganese, marble, rock, steel, and can also be used to transport wheat, grain, etc.

The end dump truck semi trailer is a compartment that can be tilted at a certain angle to allow the cargo in the compartment to be unloaded. The tilt of the vehicle is powered by the Tipper trailer engine and is accomplished by a dumping mechanism.

End dump trailers loads and unloads the goods simply and effectively. Moreover, meticulous unloading design guarantees safety. At the same time, the tipper semi trailer has different shapes and types, we can buy it according to our own use and customize it for you according to your needs.

Such as the bodies, it can be customized to suit your application. A mixture of aluminum and steel plate can be used in key areas to increase the longevity of the trailer.

All DCVC trailers are laser wheel aligned prior to delivery. The highest quality parts are sourced to manufacture each DCVC unit. All nuts, bolts and washers are stainless steel. Hydraulic, electrical and air lines are well protected within the chassis.

2.Technical Specification

DCVC's main product is semi-trailer. 3 AXLES AFRICA END TIPPER SEMI TRAILER  is our hot sales product. We have been in this line of business for more than 7 years.

3 Axles End Tipper Semi Trailer Technical Specification

3. Our End Tipper Semi Trailer's Advantage：

1. The oil cylinder is equipped with an oil cylinder valve to reduce the risk of oil leakage in the oil tank. At the same time, after the high-pressure pipe bursts, the box will not fall down, and the air control valve can also control the descent.
2. The carriage adopts a U-shaped structure, and the belts on both sides are hardened to strengthen the strength of the carriage, making the vehicle lighter.
3. The lower end of the rear door adopts a double lock hook seat locking device, and the upper end is fixed by a double hinge seat. When the rear compartment encounters obstacles, it is easier to turn over. .
4. There is an H-shaped balance bracket at the bottom, which can effectively solve the roll caused by partial load.
5. The whole vehicle is tilted forward by 10°, and the center of gravity of the vehicle is moved forward, which solves the problem of unreasonable short axle load.

4. Production Flow Chart

5. Packing & Shipping

       We'll try to help you save transportation costs. We have been in contact with many customers, so we have a very good ways for product transportation. Shipped both by container, or RORO, bulk shipment.
       Read More.....

6. Works Process

Confirmation of the tech data → sign contract (P/I) → 30% deposit→ production→ Manufacturing process updated news → completing production and inspection→ 70% Balance payment → shipment → custom clearance → A/S service for 2 years.  Read More...........

7. Trade Terms

        EXW, FOB, CIF, D2D or by your requirement.   Read More.......

8. Payment Terms

            T/T, L/C is acceptable. We also ready to assist you with financing options that meet your budget.

Not only are our expert staff members equipped to help you navigate your flatbed trailer options, but they are also ready to assist you with financing options that meet your budget. Through our specialized financing partners, we can ensure that you have access to everything you need to get on the road and back to the job. Browse our premium inventory and contact our team with any questions you might have.

             Read More.......

9. QC Process

             Read More.....

10. After Sales

Advanced manufacturing equipment and mature workmanship to ensure outstanding performance. Fast response and flexible service from our professional team. Distinct location to get full range support on delivery and manufacturing. DCVC's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

If you have anyquestions after buying our 3 Axles Africa End Tipper Semi Trailer, please kindly contact us.

Read More.....
