Description
TRAILER FLATBED 40FT 3 AXLES
LIGHT WEIGHT DESIGN FOR AFRICA
1. Product Features:
Most flatbed trailers come in lengths of 45', 48', or 53'. The size needed will depend on the purpose of the flatbed trailer use. These trailers are constructed as all steel, all aluminum, or a combination of both. Flatbed trailers commonly haul, but are not limited to: lumber, pallet freight, steel piping, landscape material, hay, etc.
Flatbed trailers are a versatile option for hauling cargo. For this reason, flatbed trailers are used in numerous and varied industries. Flatbed trailers are one of the most commonly used trailers in the trucking industry due to their ability to haul a vast array of cargo. The following are all industries that utilize flatbed trailers:
Construction: The building and construction industry relies heavily upon the transportation of heavy cargo. From steel frames to concrete to heavy equipment, the construction industry utilizes flatbed trailers constantly.
Landscaping: Landscaping is an industry that requires the transportation of both heavy equipment and cumbersome materials such as pallets of sod.
Oil and Gas: One industry that benefits greatly from the unique structure of flatbed trailers is oil and gas. Flatbed trailers make it possible to haul heavy cargo and equipment while making the loading and unloading process easier.
2.Technical Specification
DCVC's main product is semi-trailer. 40FT 3 AXLES AFRICA TRAILER FLATBED is our hot sales product. We have been in this line of business for more than 7 years.

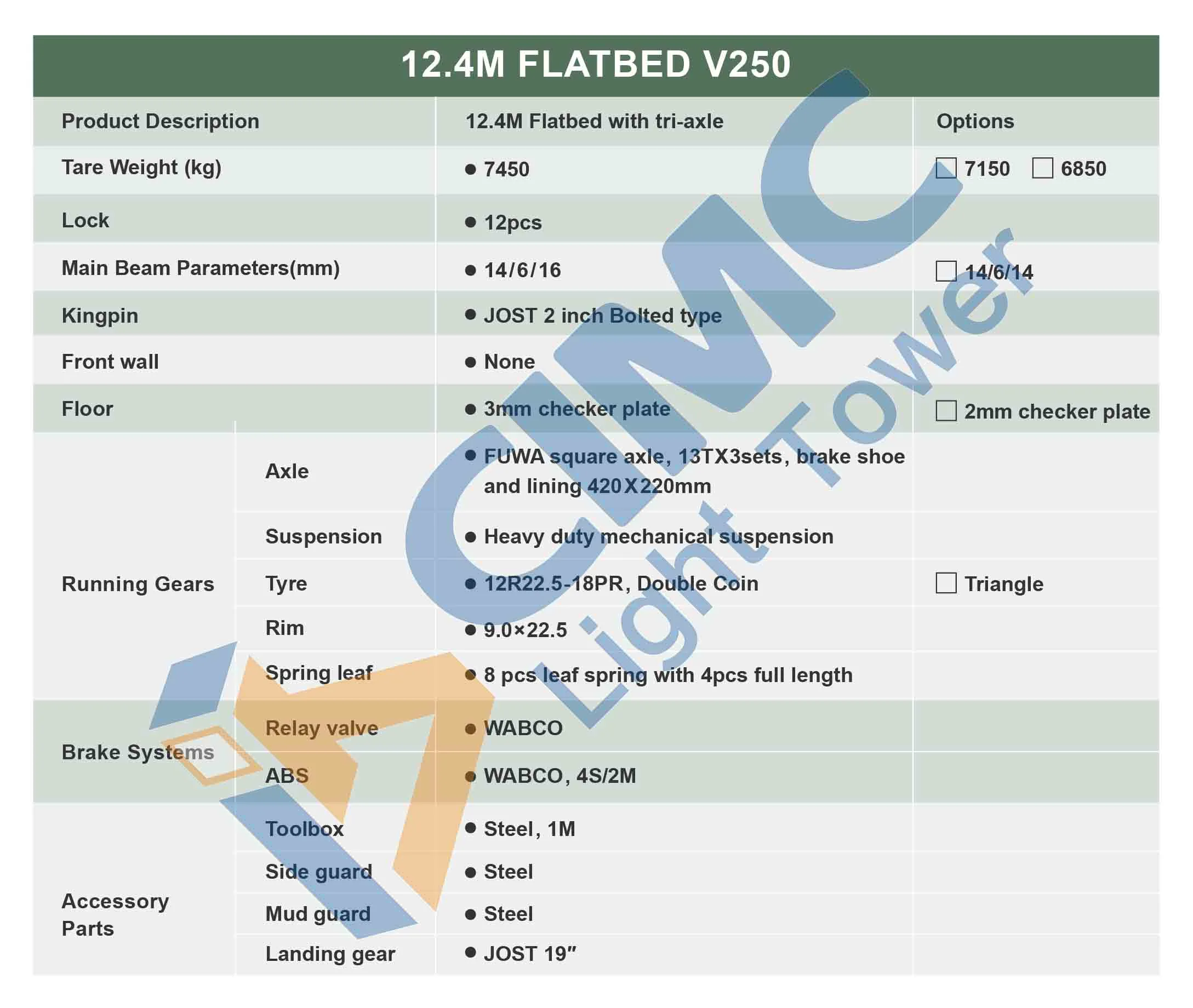

40FT 3 Axles Trailer Flatbed Technical Specification
40FT Tri-axle Trailer Flatbed light weight design for African market

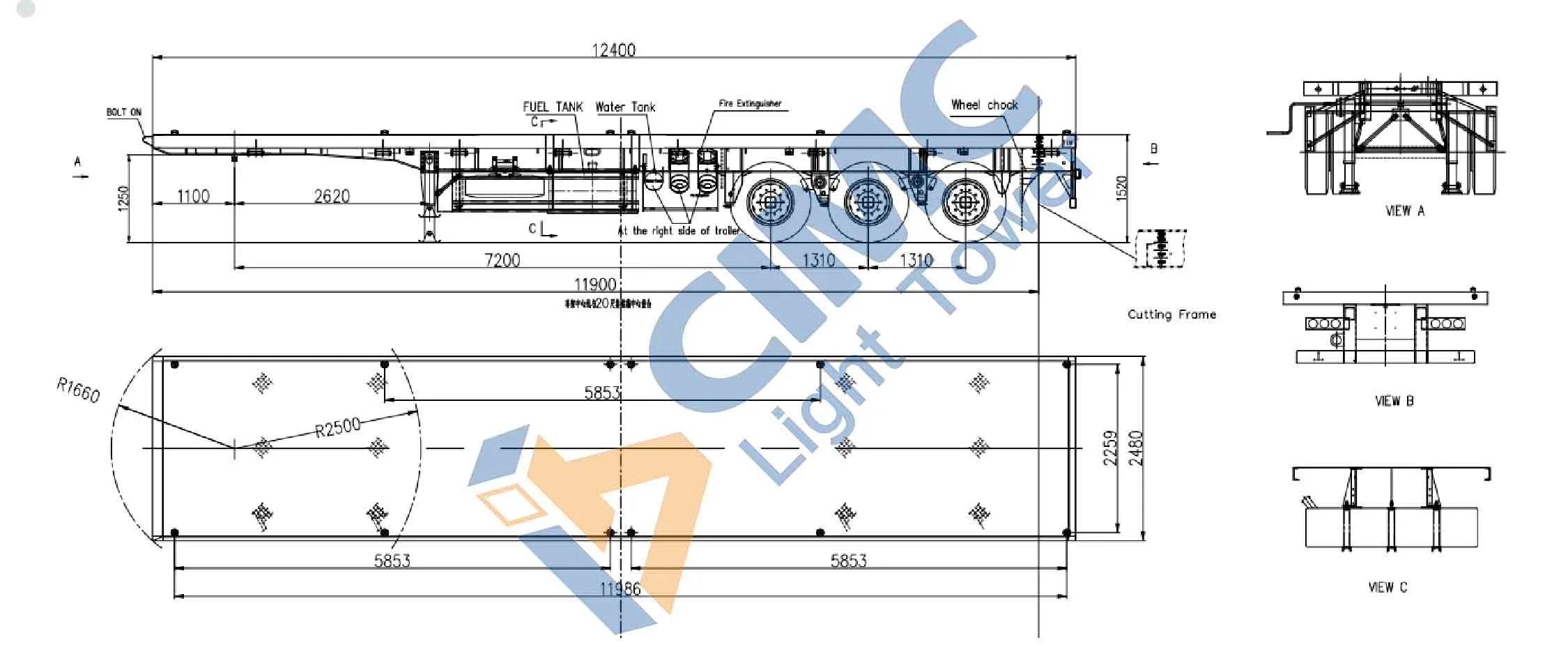

3. Structure and Principle：
DCVC's 40FT 3AXLES AFRICA TRAILER FLATBED is a commonly seen model equipped with 3 pieces of semi-trailer axles for standard 40ft container. It can be modified according to customer's requirement.

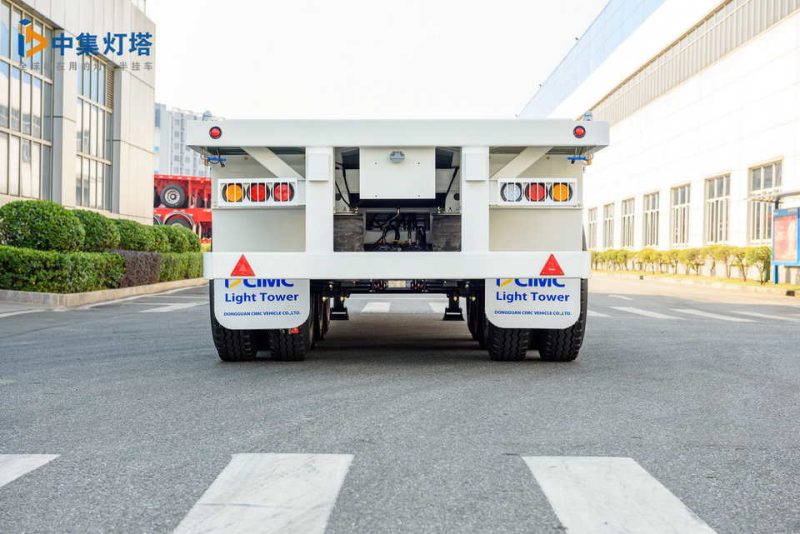

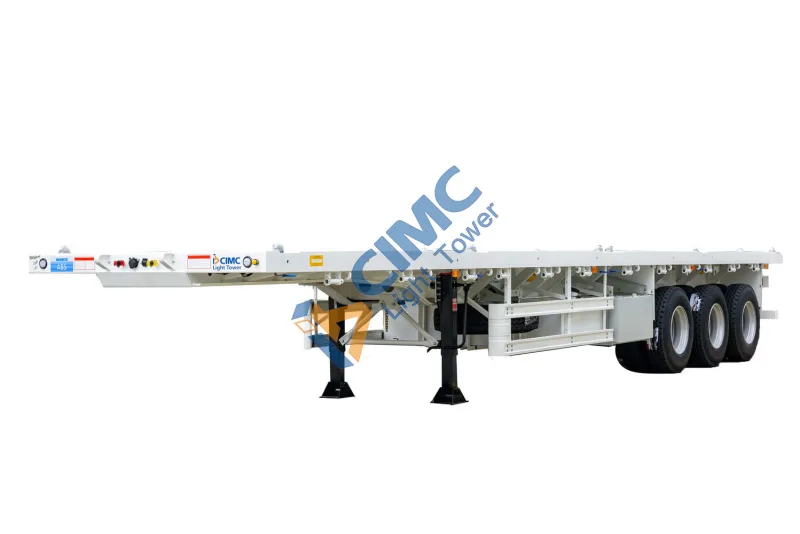

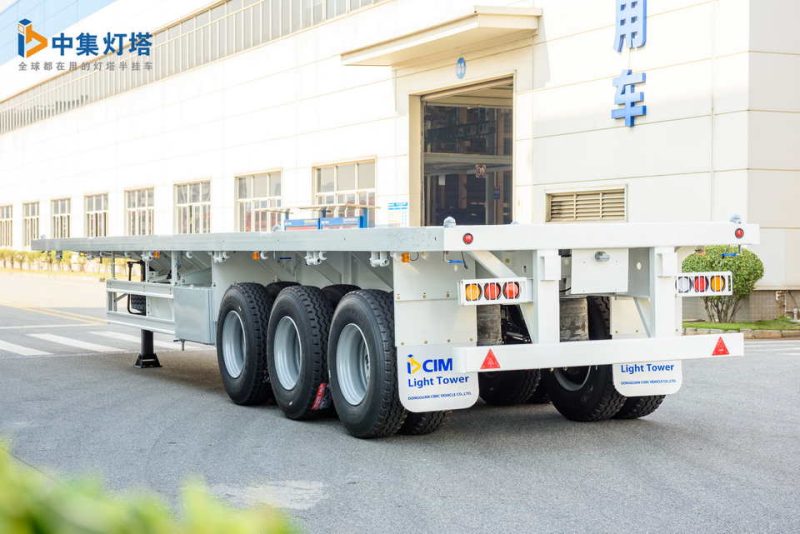

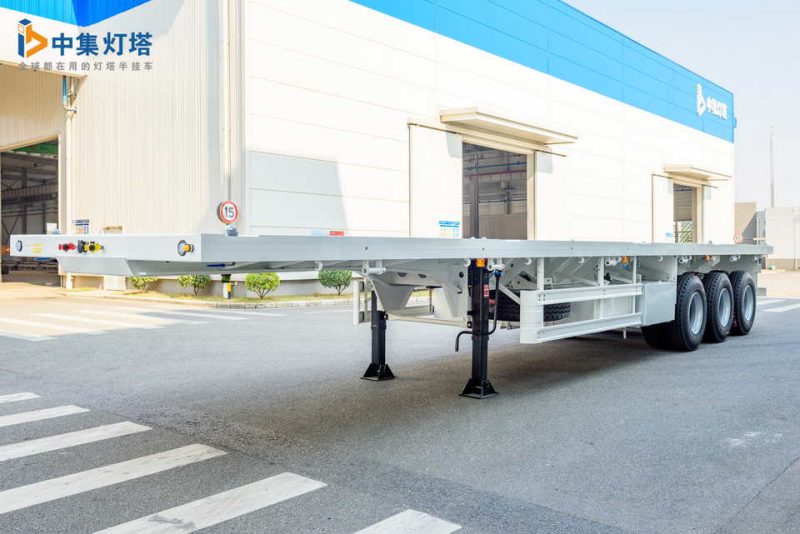

Overview of 3 Axles 40ft Flatbed Container Transport Semi Truck Trailer
Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements.
Flange and web width & thickness could be customized
Steel material we use is high strength low alloy steel Q345.
Welded by automatic submerged-arc process. Complete chassis shot blasting to clean rust and remove welding stress
Different thickness of diamond pattern floor plate is optional
Axles could be optional for German type or American type
Suspension is optional for mechanical suspension, air suspension.
Detail for Flatbed Semi Trailer 01
4. Production Flow Chart
5. Packing & Shipping
5. Packing & Shipping We'll try to help you save transportation costs. We have been in contact with many customers, so we have a very good ways for product transportation. Shipped both by container, or RORO, bulk shipment.
Read More.....
6. Works Process
Confirmation of the tech data → sign contract (P/I) → 30% deposit→ production→ Manufacturing process updated news → completing production and inspection→ 70% Balance payment → shipment → custom clearance → A/S service for 2 years. Read More...........
7. Trade Terms
EXW, FOB, CIF, D2D or by your requirement. Read More.......
8. Payment Terms
T/T, L/C is acceptable. We also ready to assist you with financing options that meet your budget.
Not only are our expert staff members equipped to help you navigate your flatbed trailer options, but they are also ready to assist you with financing options that meet your budget. Through our specialized financing partners, we can ensure that you have access to everything you need to get on the road and back to the job. Browse our premium inventory and contact our team with any questions you might have.
9. QC Process
10. After Sales
Advanced manufacturing equipment and mature workmanship to ensure outstanding performance. Fast response and flexible service from our professional team. Distinct location to get full range support on delivery and manufacturing. DCVC's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.
If you have anyquestions after buying our 40FT 3AXLES AFRICA TRAILER FLATBED , please kindly contact us.
