40Ft Tandem Terminal Chassis

Description

40Ft Tandem Terminal Chassis Description

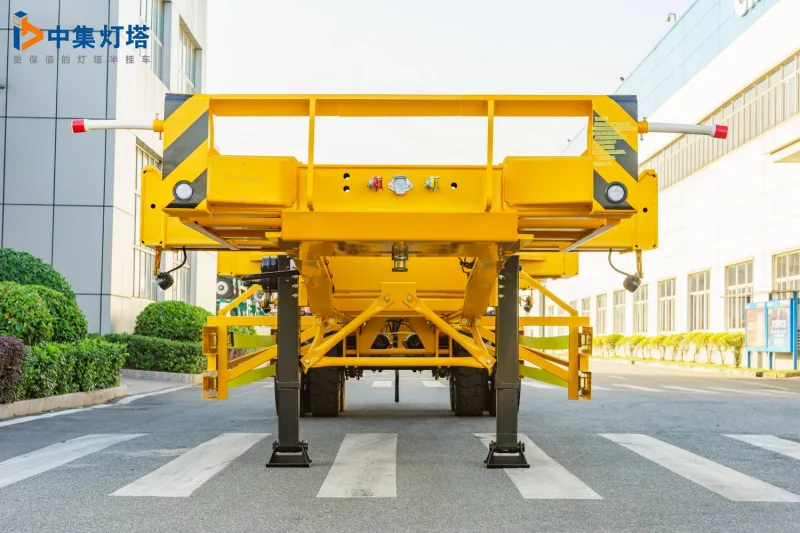

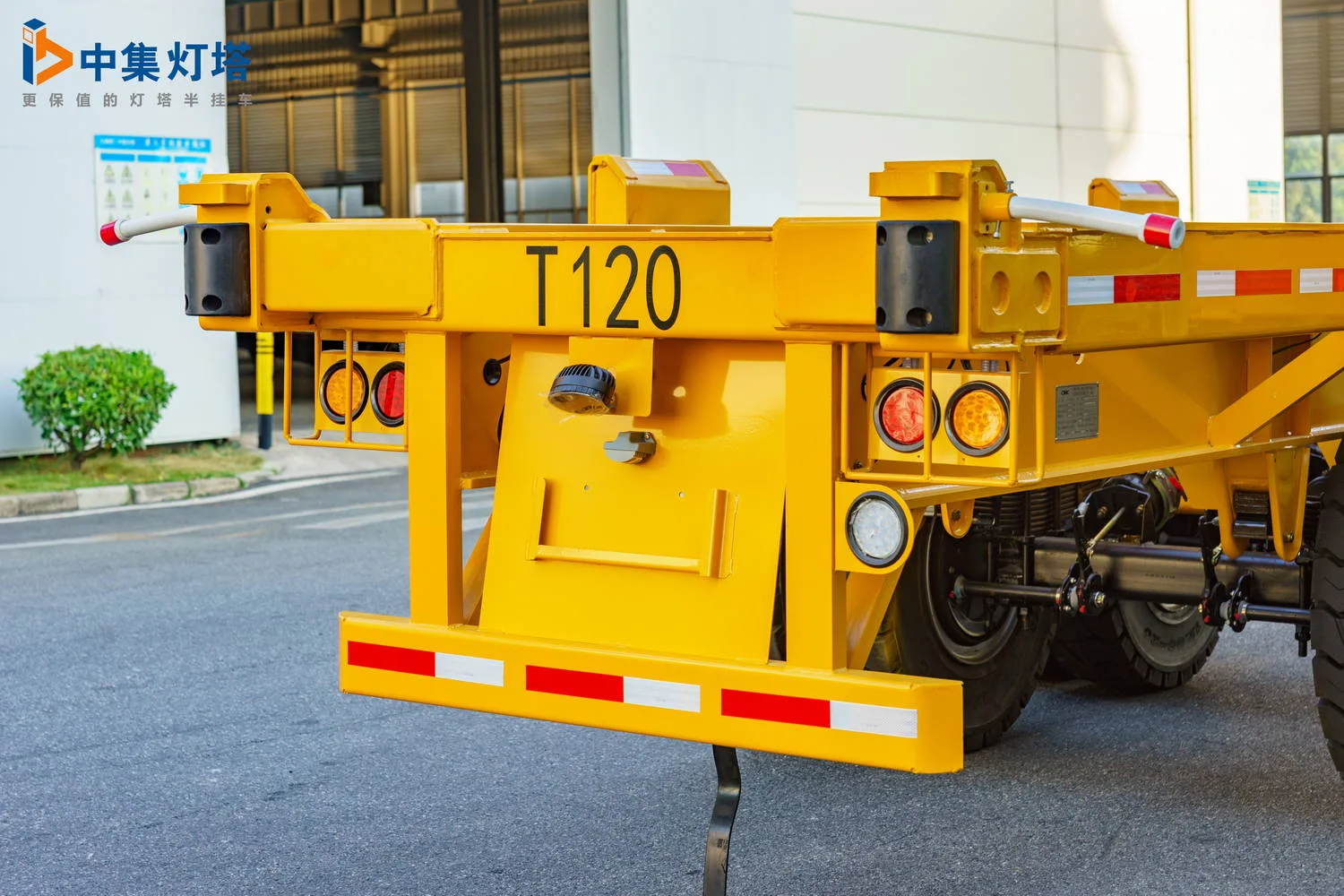

Unveiling the CIMC Terminal Chassis: Where Precision Meets Power!

Welcome to the epitome of excellence in semi-trailer engineering - introducing our flagship product, the CIMC Terminal Chassis. Crafted with unmatched precision and engineered for enduring strength, our terminal chassis is the unrivaled choice for those who demand excellence in every haul.

1. Product Features:

(1) Robust Construction: The CIMC Terminal Chassis is built to withstand the toughest challenges of the terminal environment. Its heavy-duty frame ensures durability and longevity, making it a reliable partner in your logistics journey.

(2) Advanced Suspension System: Our chassis boasts an advanced suspension system designed to provide a smooth ride, even in the most demanding terrains. Experience stability and control like never before, ensuring your cargo arrives safely and intact.

(3)Tailored Configurations: We understand that every haul is unique. That's why our terminal chassis comes with customizable configurations to meet your specific requirements. From twist locks to extendable features, we have it all covered.

 2.Technical Specification

40Ft Tandem Terminal Chassis's Technical Specification

               Tare Weight/kg:                     Approx. 9,500kg
               Overall dimension/mm:     14,136 x 2,710 x 1730
               Kingpin Setting/mm:           750
               Wheel base/mm:                   1310
              Payload/kg:                             7,300
               G.V.W.R./kg:                         16,800

3. Structure and Principle：

（1）The Skeleton semi-trailer frame is welded by longitudinal beam, transverse beam, front-end beam and rear-end beam.

（2）The longitudinal beam is welded with a high quality steel plate and submerged arc welding. The transverse beam is pressed into groove by high quality steel plate. front-end beam and rear-end beam are welded rectangular sections.

(3) The container lock device is equipped with an integrated beam, which can carry the carrying capacity.

(4) It can be loaded with standard containers of 40 feet and 20 feet. In addition, it can be customized according to your requirements.

(5) The supporting device has single action and linkage type. It is mainly composed of supporting disc, screw drive mechanism, reducer box and control handle.

(6) The suspension has uniaxial suspension, biaxial suspension and triaxial suspension. And equipped with a spare tire, on both sides of the truck.

            More  Details





4. Production Flow Chart

5. Packing & Shipping

       We'll try to help you save transportation costs. We have been in contact with many customers, so we have a very good ways for product transportation. Shipped both by container, or RORO, bulk shipment.
       Read More.....

6. Works Process

Confirmation of the tech data → sign contract (P/I) → 30% deposit→ production→ Manufacturing process updated news → completing production and inspection→ 70% Balance payment → shipment → custom clearance → A/S service for 2 years.  Read More...........

7. Trade Terms

EXW, FOB, CIF, D2D or by your requirement.   Read More.......

8. Payment Terms

T/T, L/C is acceptable. We also ready to assist you with financing options that meet your budget.  Read More.......

9. QC Process

Read More.....

10. After Sales

Advanced manufacturing equipment and mature workmanship to ensure outstanding performance. Fast response and flexible service from our professional team. Distinct location to get full range support on delivery and manufacturing. DCVC's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

If you have anyquestions after buying our 3 Axle Container chassis, please kindly contact us.

Read More.....
