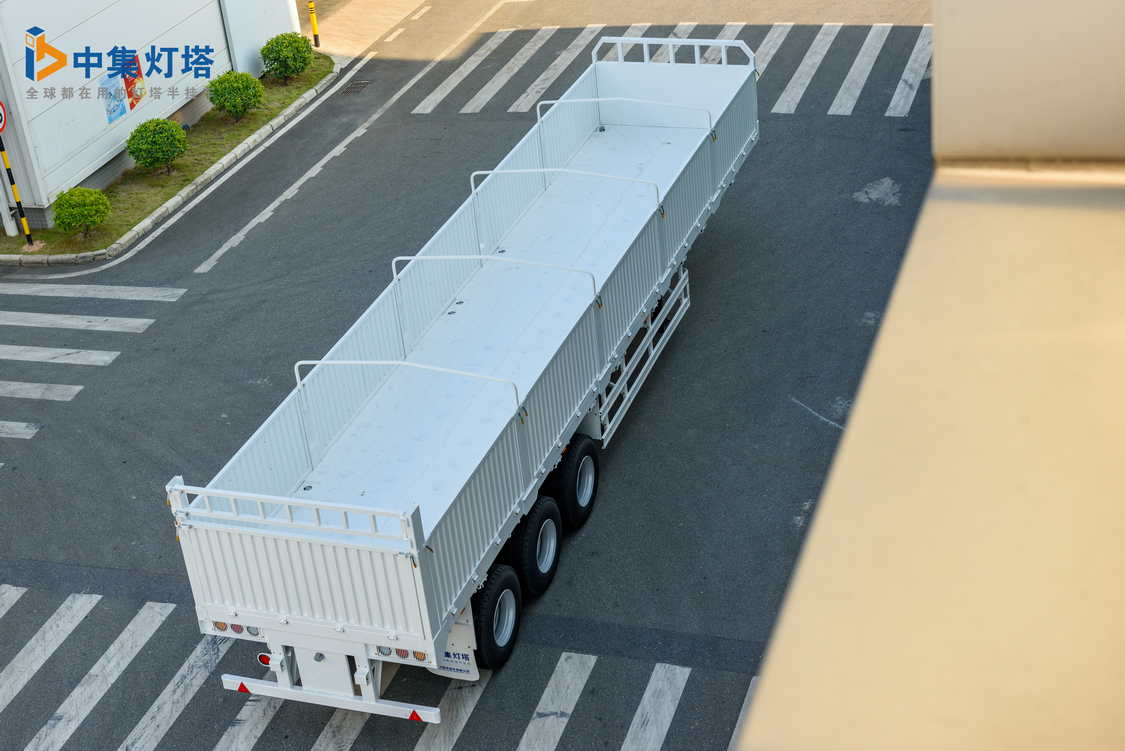

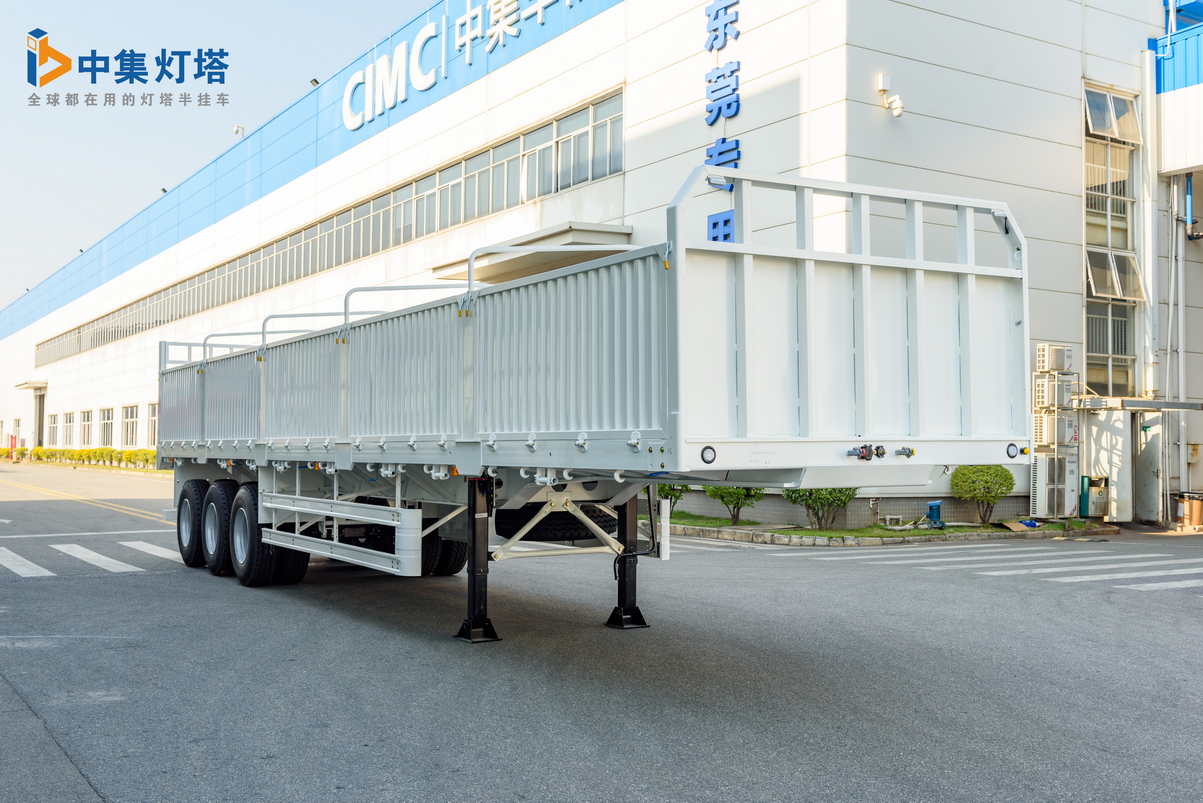

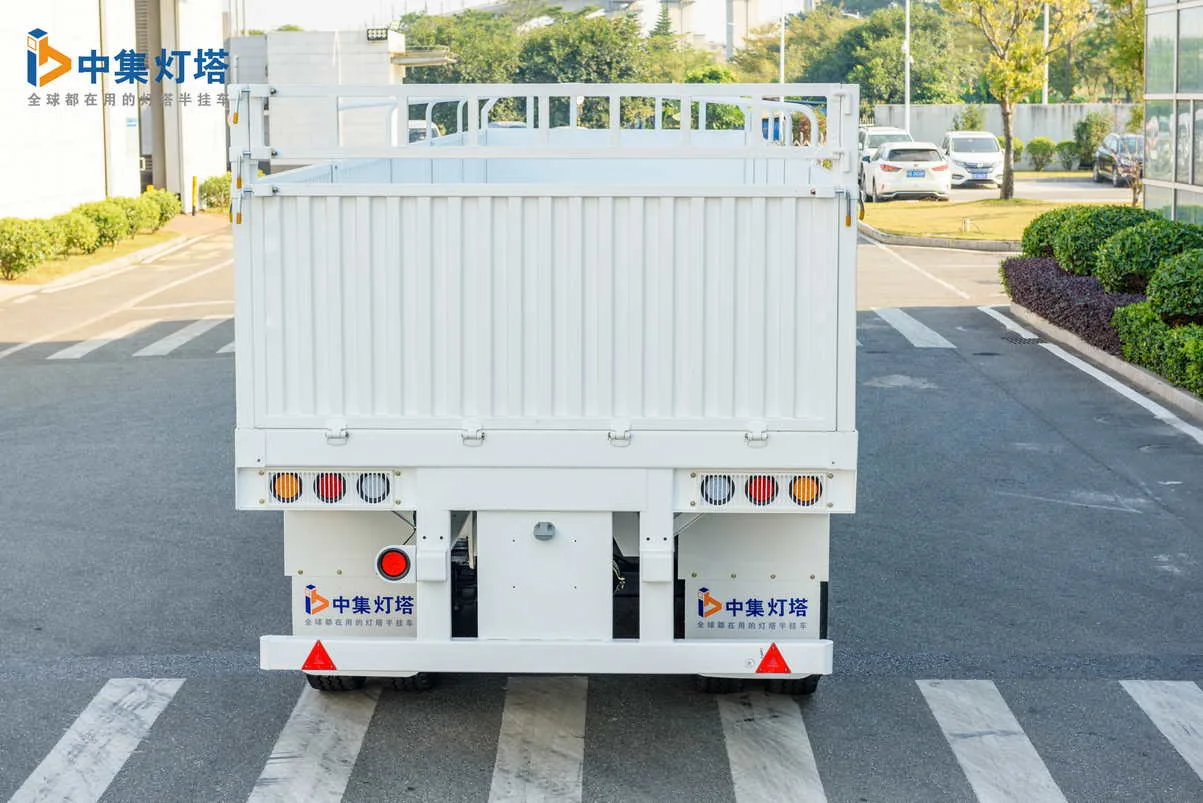

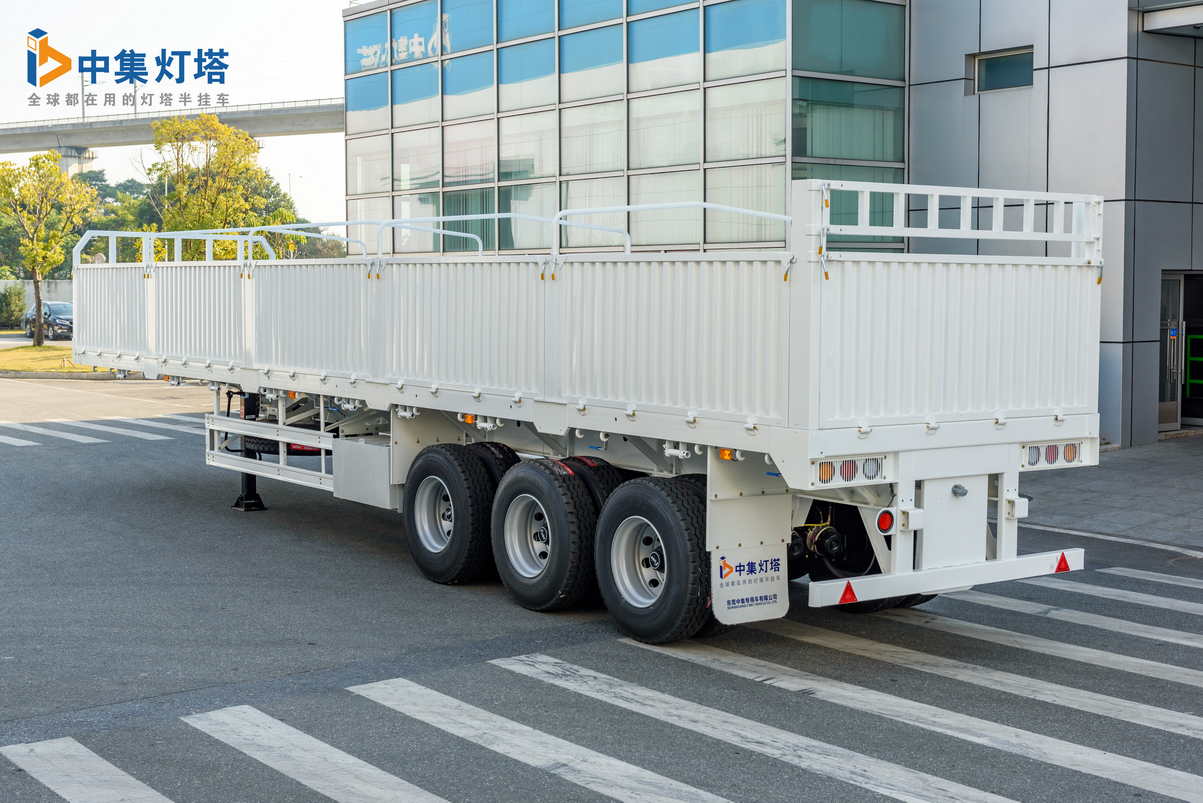

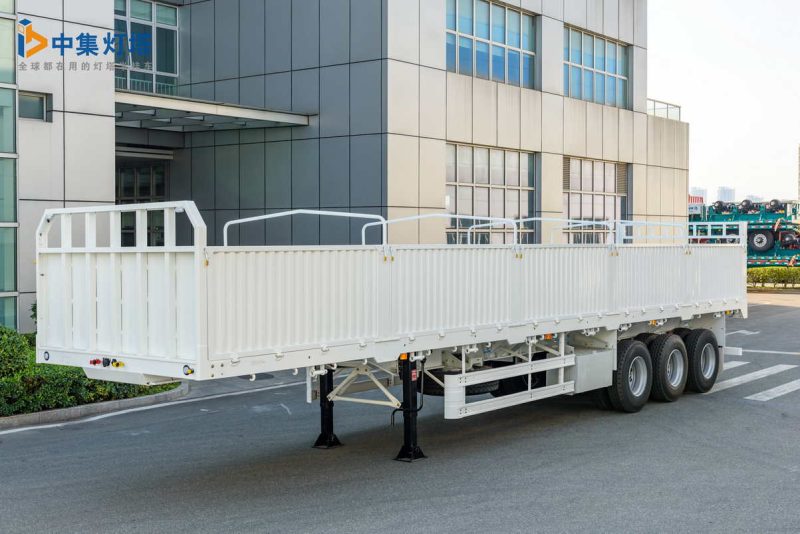

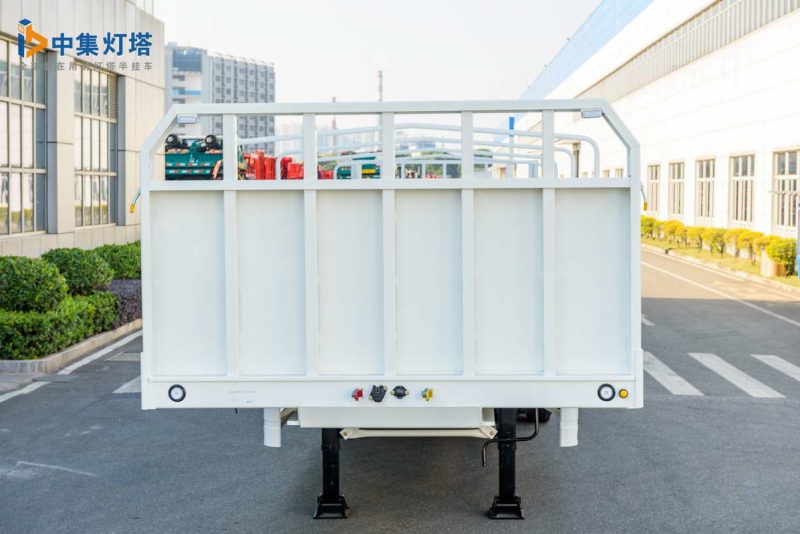

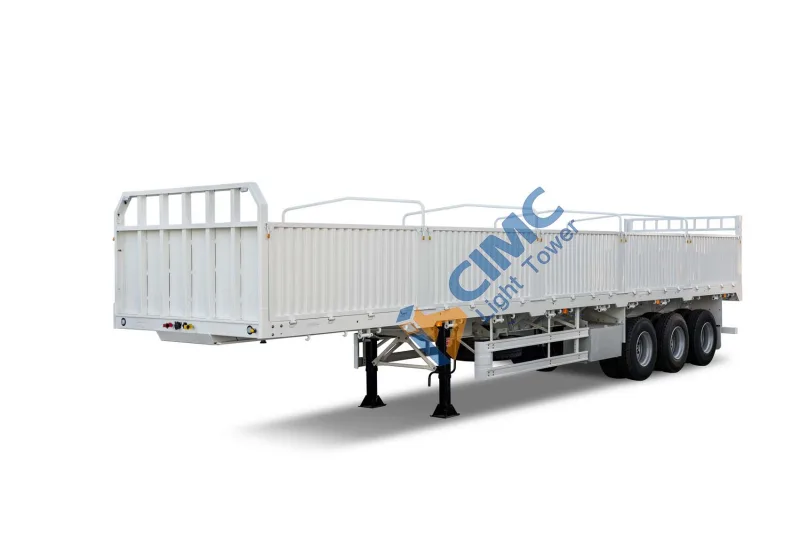

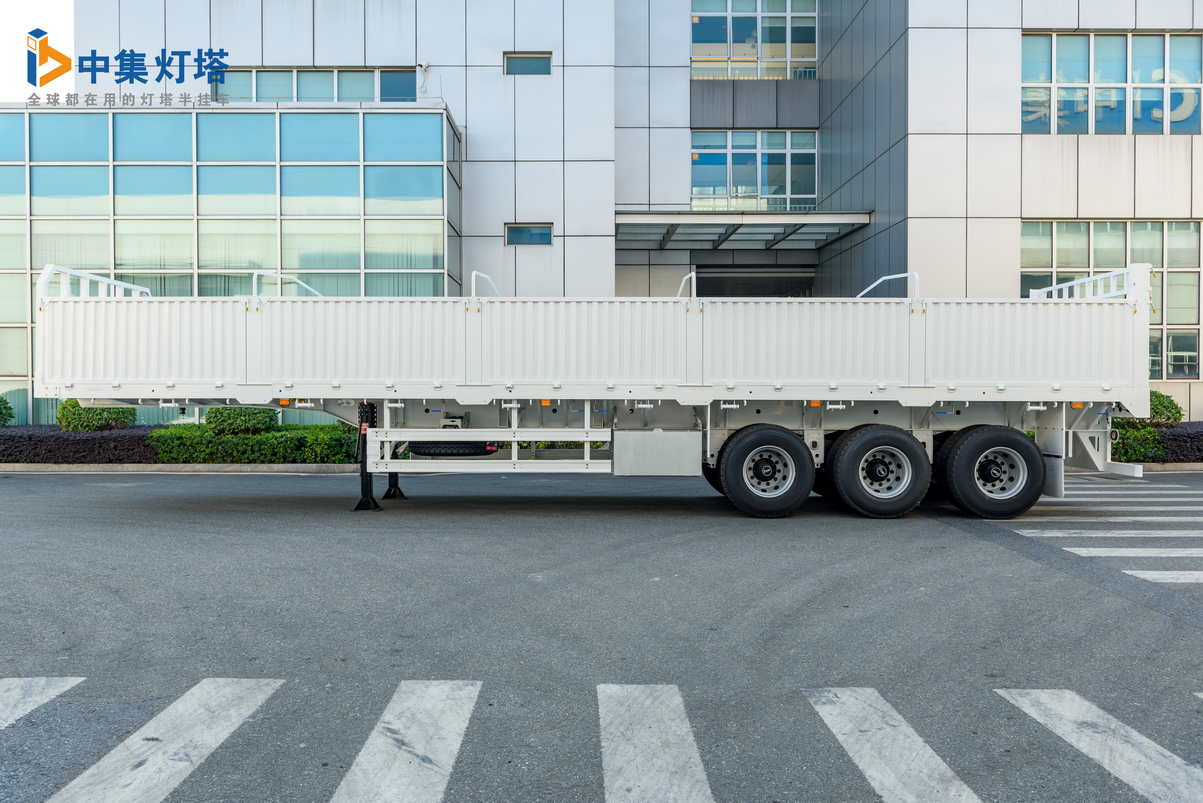

SIDEWALL TRAILER 40FT TRIDEM FOR AFRICA

Description

Sidewall Trailer 40FT Tridem Description

1. Product Features:

Side wall semi-trailer with heavy duty and extra durability designed I beam is your best choice for long and short distance logistics Which special used in logistic industry, with high loading capacity, light self-weight, it's a high cost-effective product.
Side Wall Semi-Trailer is your good partner to transport dry goods and bulk cargo on road. Different design on stake and board can be modified according to customer's requirement.

 2.Technical Specification

DCVC's main product is semi-trailer. 40FT Tridem sidewall trailer  is our hot sales product in Africa. We have been in this line of business for more than 7 years.

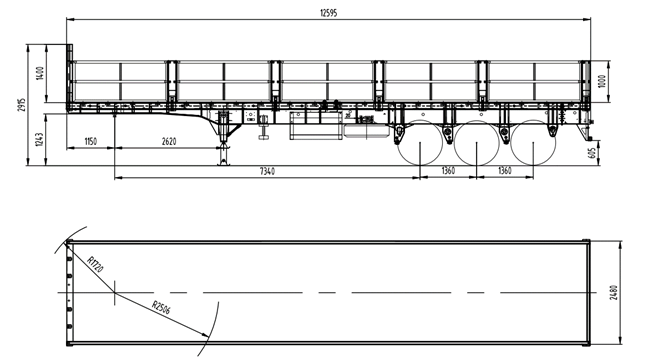

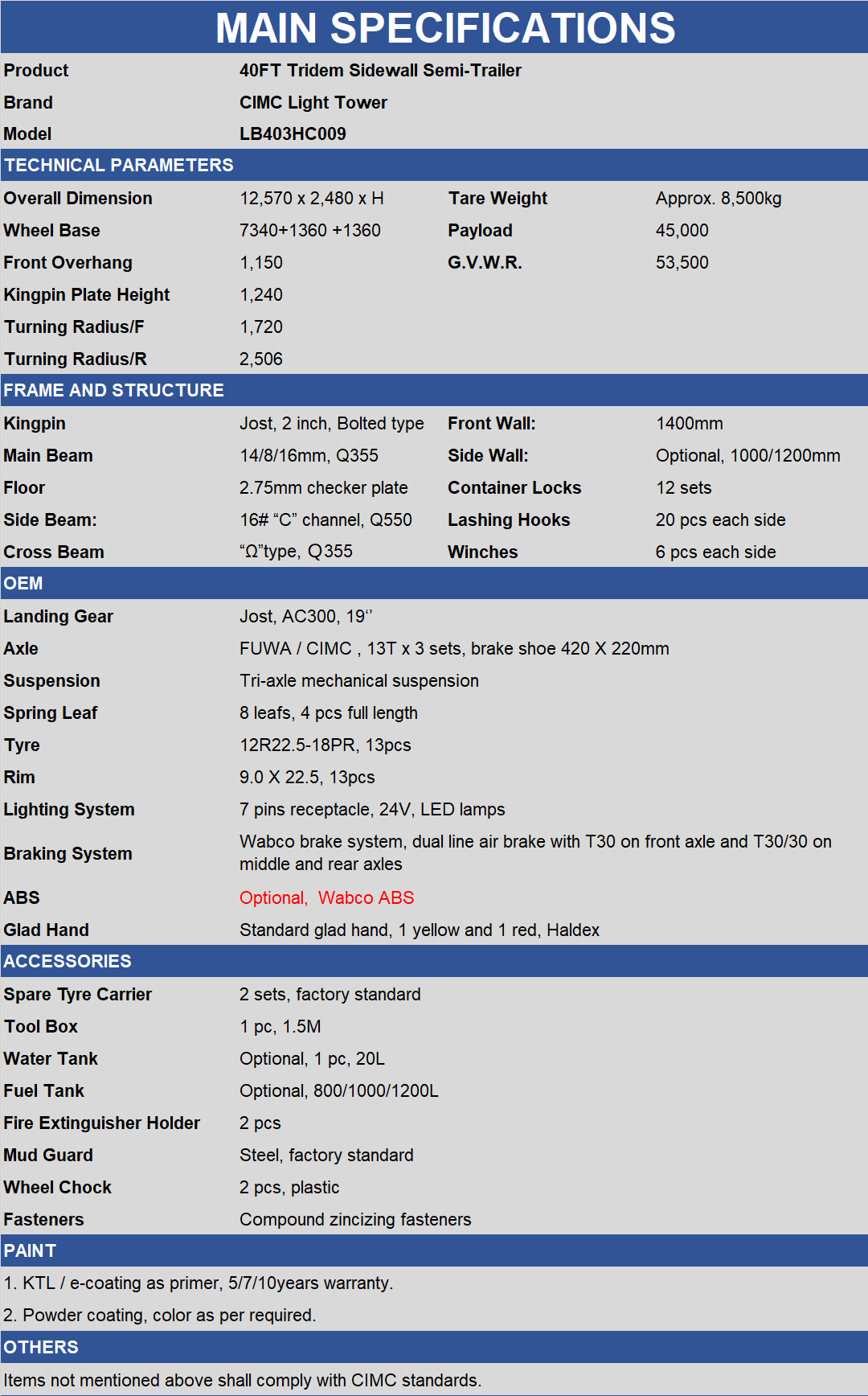

40FT Tridem sidewall trailer Technical Specification



3. Structure and Principle：

Space frame welded structure, which is formed by welding two I-shaped longitudinal beams and a plurality of beams (C-shaped channel steel).
Steel material we choose to use is high strength steel Q345.
Whole body is welded by advanced automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress.
Equipped with 3 pieces of 13T Famous Brand semi-trailer axle; Optional for brands.
Mechanical suspension or bogie suspension for choice.
Other core components are of superior quality and famous brand. Details are outlined as below.



4. Production Flow Chart

5. Packing & Shipping

       We'll try to help you save transportation costs. We have been in contact with many customers, so we have a very good ways for product transportation. Shipped both by container, or RORO, bulk shipment.
       Read More.....

6.　Works Process

Confirmation of the tech data → sign contract (P/I) → 30% deposit→ production→ Manufacturing process updated news → completing production and inspection→ 70% Balance payment → shipment → custom clearance → A/S service for 2 years.  Read More...........

7. Trade Terms

EXW, FOB, CIF, D2D or by your requirement.   Read More.......

8. Payment Terms

T/T, L/C is acceptable. We also ready to assist you with financing options that meet your budget.  Read More.......

9. QC Process

Read More.....

10. After Sales

Advanced manufacturing equipment and mature workmanship to ensure outstanding performance. Fast response and flexible service from our professional team. Distinct location to get full range support on delivery and manufacturing. DCVC's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

If you have anyquestions after buying our 45ft 3 Axle Africa Sidewall Semi Trailer With Crane, please kindly contact us.
