Interlink Flatbed for Africa

Description

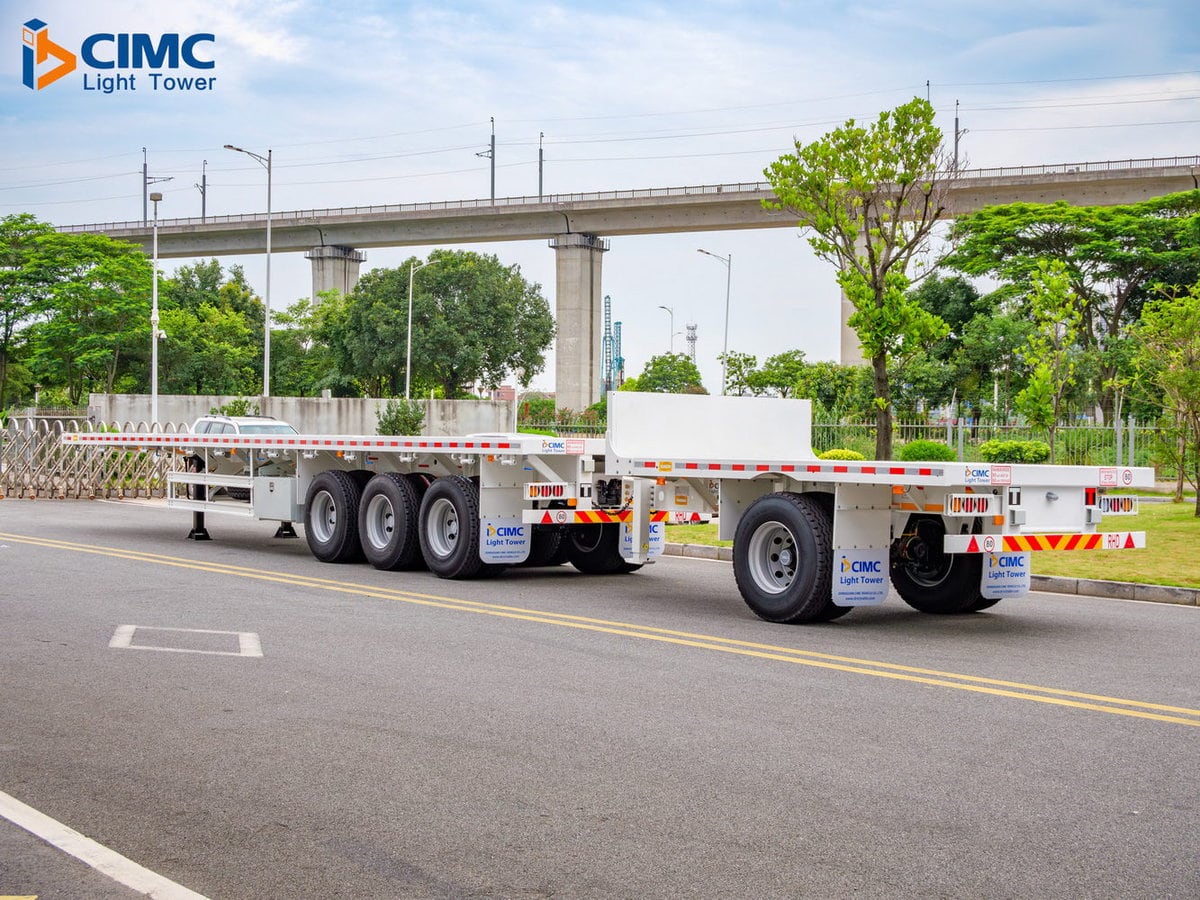

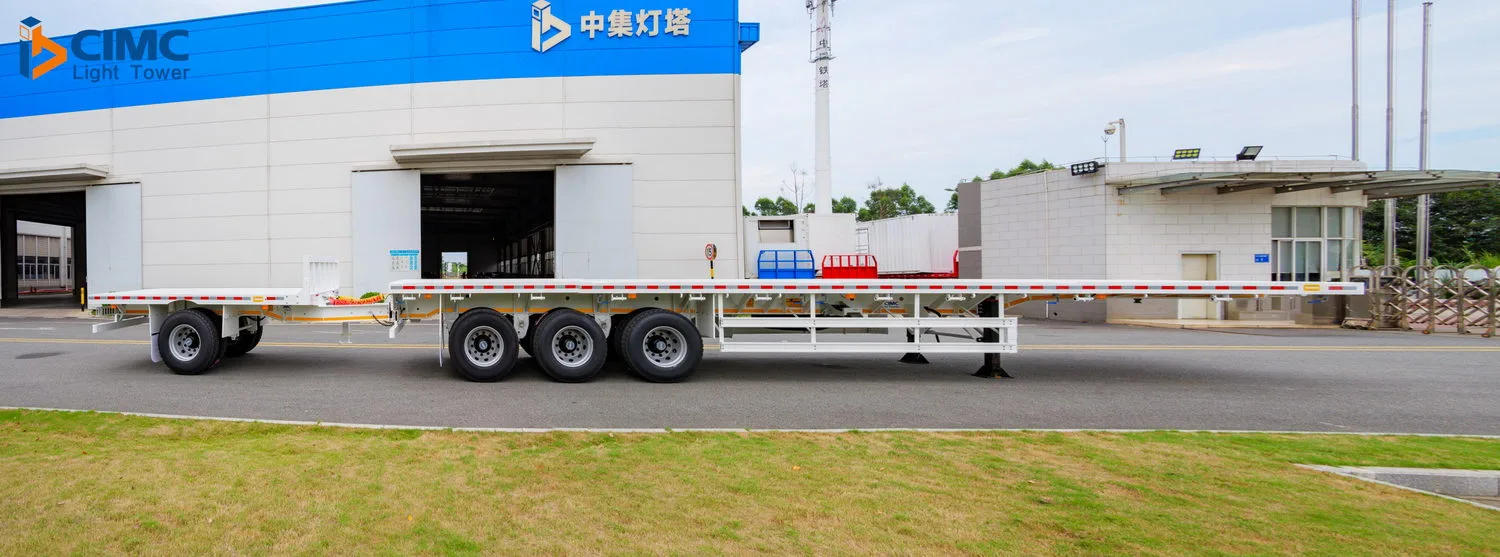

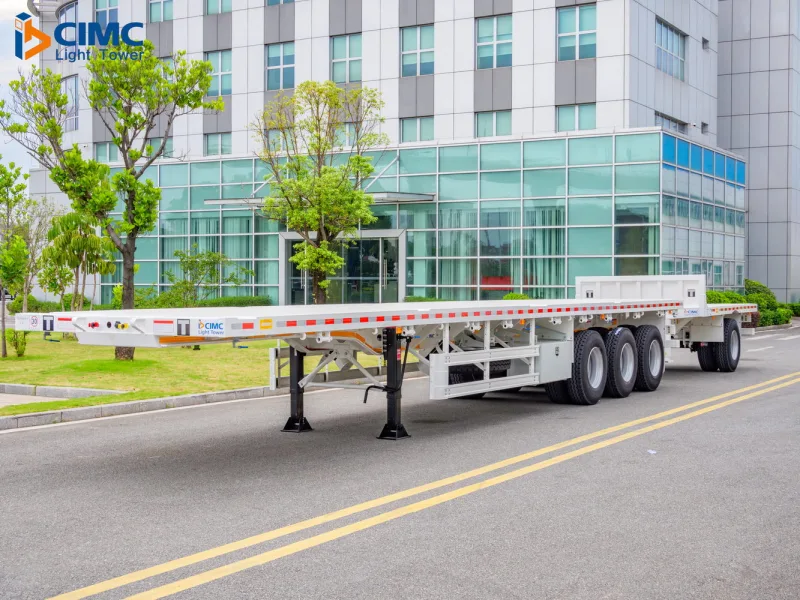

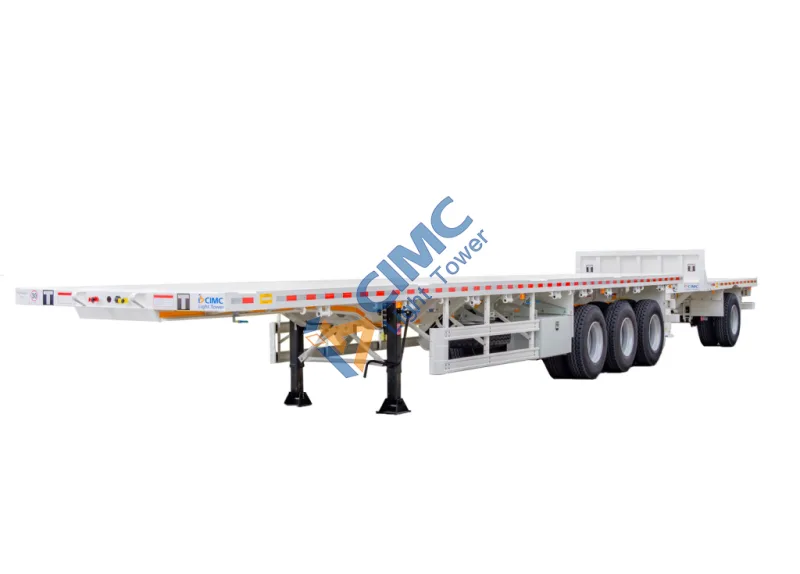

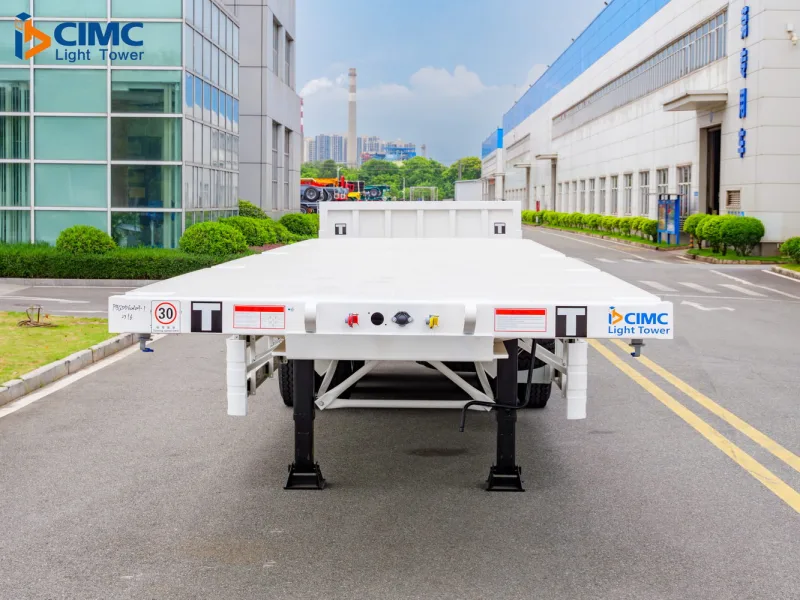

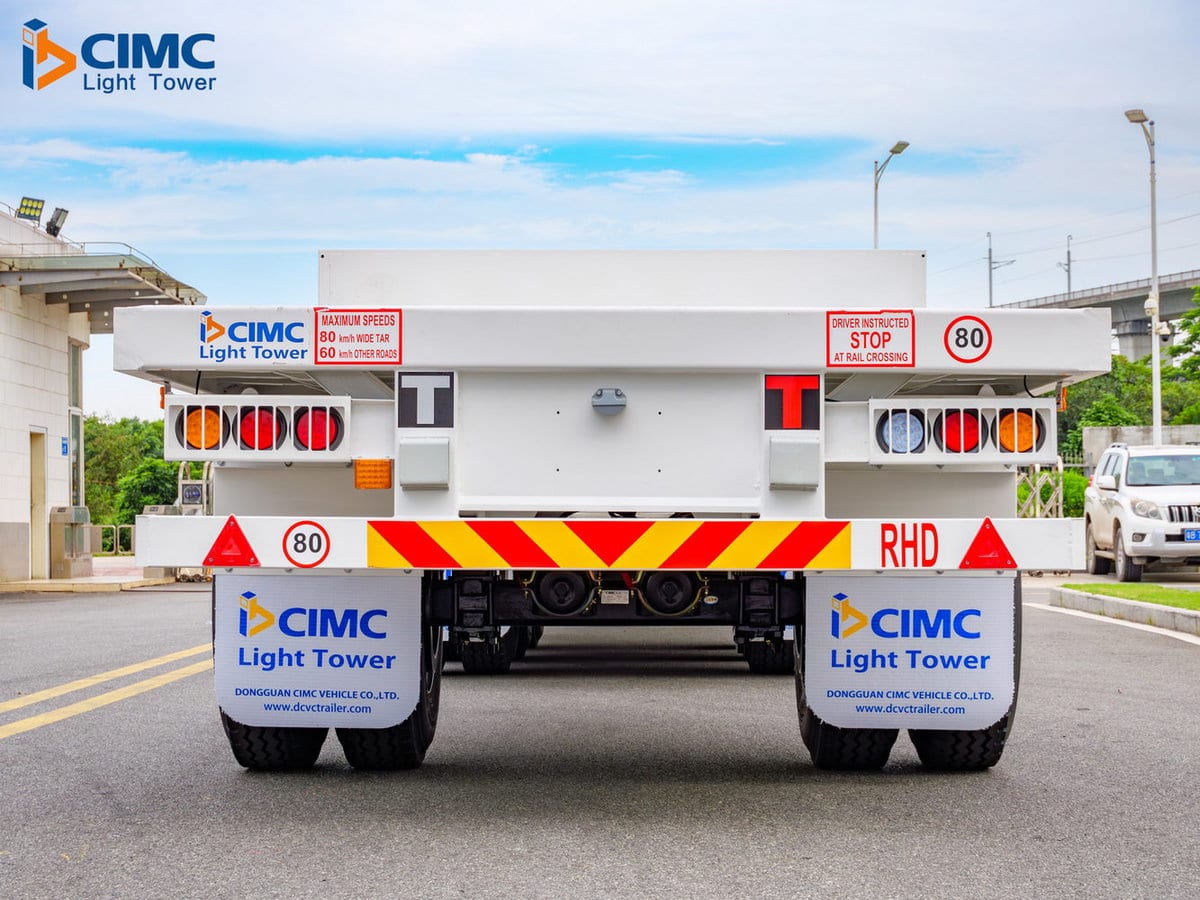

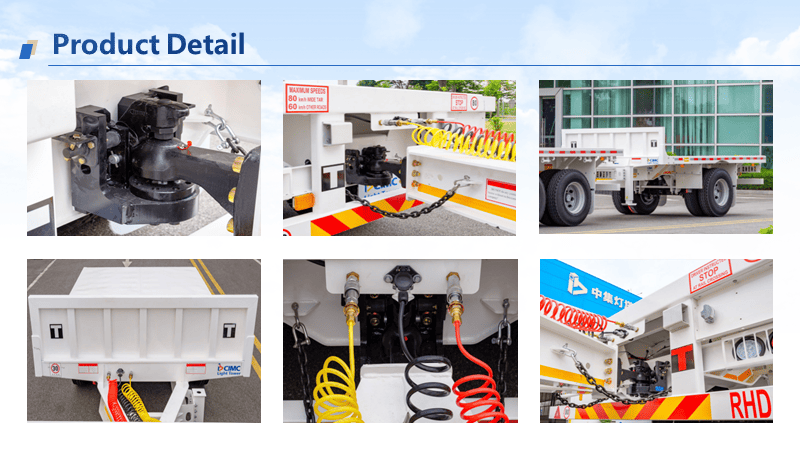

B-double Flatbed Semi Trailer, 12.4m flatbed Semi-trailer + 4m mini flatbed

1. Product Features:

1. The fasteners of the whole vehicle adopt the compound sherardizing process; the non-composite sherardizing parts need to be sprayed with wax for anti-corrosion.
2. Front beam with handshake valve anti-collision protection block, bolt installation design, distributed to Africa for installation.
3. After all the labels are completed by the factory, 10% of the labels will be given as gifts to prevent damage during transportation.
4. The vehicle design needs to meet the axle load requirements of 8+18+24 tons.
5. Cancel the front position lights and rear position lights.
6. All others not mentioned above shall comply with CIMC’s standards.

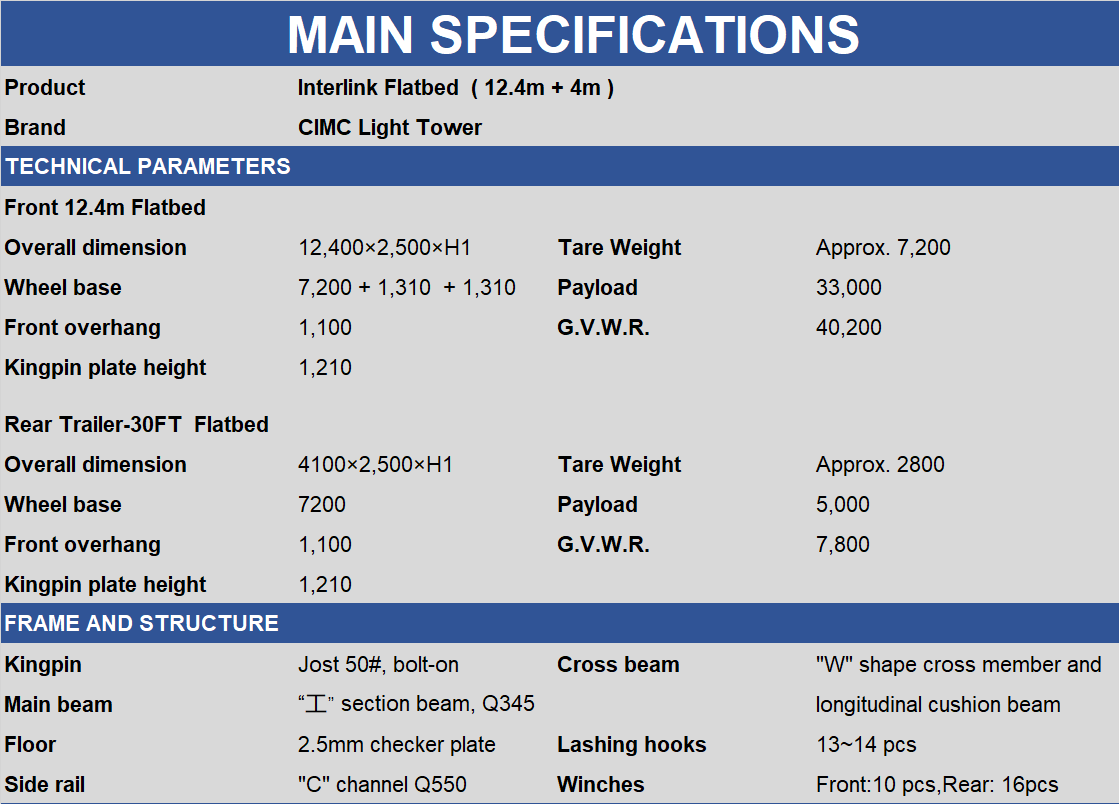

 2.Technical Specification

DCVC's main product is semi-trailer. Interlink Flatbed  is our hot sales product. We have been in this line of business for more than 7 years.

3. Structure and Principle：

DCVC's 3 axles 45ft Flatbed Semi Trailer is a commonly seen model equipped with 3 pieces of semi-trailer axles for standard 40ft container. It can be modified according to customer's requirement.
Overview of 3 Axles 40ft Flatbed Container Transport Semi Truck Trailer
Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements.
Flange and web width & thickness could be customized
Steel material we use is high strength low alloy steel Q345.
Welded by automatic submerged-arc process. Complete chassis shot blasting to clean rust and remove welding stress
Different thickness of diamond pattern floor plate is optional
Axles could be optional for German type or American type
Suspension is optional for mechanical suspension, air suspension.

4. Production Flow Chart

5. Packing & Shipping

       We'll try to help you save transportation costs. We have been in contact with many customers, so we have a very good ways for product transportation. Shipped both by container, or RORO, bulk shipment.
       Read More.....

6. Works Process

Confirmation of the tech data → sign contract (P/I) → 30% deposit→ production→ Manufacturing process updated news → completing production and inspection→ 70% Balance payment → shipment → custom clearance → A/S service for 2 years.  Read More...........

7. Trade Terms

        EXW, FOB, CIF, D2D or by your requirement.   Read More.......

8. Payment Terms

            T/T, L/C is acceptable. We also ready to assist you with financing options that meet your budget.

Not only are our expert staff members equipped to help you navigate your flatbed trailer options, but they are also ready to assist you with financing options that meet your budget. Through our specialized financing partners, we can ensure that you have access to everything you need to get on the road and back to the job. Browse our premium inventory and contact our team with any questions you might have.

             Read More.......

9. QC Process

             Read More.....

10. After Sales

Advanced manufacturing equipment and mature workmanship to ensure outstanding performance. Fast response and flexible service from our professional team. Distinct location to get full range support on delivery and manufacturing. DCVC's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

If you have anyquestions after buying our 45Ft 12 Wheeler Flatbed Trailer, please kindly contact us.

Read More.....
